Iball has launched a new device, named Baton iB-WRB150N 150M Wireless-N Broadband Router. It is available in eCommerce website at only Rs. 996.

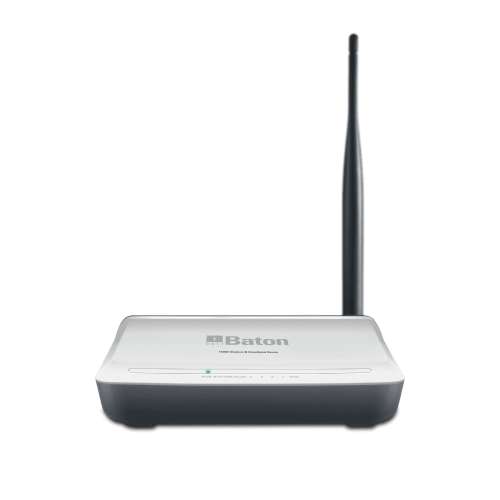

Iball Baton iB-WRB150N 150M Wireless-N Broadband Router
Iball Baton iB-WRB150N 150M Wireless-N Broadband Router

Complies with IEEE 802.3, IEEE 802.3u standards
4 – 10/100M LAN Port, 1 – WAN Port & Wireless-N AP
Operation Mode : AP Router / WDS
Broadband Internet such as PPPoE, Static IP & Dynamic IP connection type
With security features as IP, MAC & Domain filtering
Wireless security such as WEP, WPA-PSK & WPA2-PSK
Built-in NAT, DHCP server
Virtual Server, DMZ and UPnP
Web-based management
5dBi Omni-Directional Antenna


The features and specifications mentioned at here is taken from its official website. Iball website says, it also follow IEEE 802.3, 802.3u, 802.11b, 802.11g & 802.11n standards and TCP/IP, PPPoE, DHCP, ICMP, NAT, SMTP protocols. Boasts with one 10/100M Auto-Negotiation RJ45 WAN  port, the router has four 10/100M Auto-Negotiation RJ45 LAN ports supporting Auto MDI/MDIX.

The Iball Baton iB-WRB150N router sports WPS/Reset buttons, featured with PWR, SYS, WPS, WLAN, LAN (1-4), WAN LED’s lights. The router powered by 9 VDC , 0.6A power adapter.

Wireless frequency 2.4~2.4835GHz supported, features WEP (64/128/152 bit) and WPA/WPA2 (WPA-PSK/WPA2-PSK (TKIP/AES)) wireless security options.

The Iball Baton iB-WRB150N router data transmission rate is on 802.11n(draft 2.0) standards is 135/121.5/108/81/54/40.5/27/13.5Mbps, 130/117/104/78/52/39/26/13Mbpsc, 65/58.5/52/39/26/19.5/13/6.5Mbps(adaptive), whereas on standard 802.11g, data transmission rate is 54/48/36/24/18/12/9/6M(adaptive) and on 802.11b platform, it will deliver 11/5.5/2/1M(adaptive).

Receiver Sensitivity supported 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER. The Baton iB-WRB150N router sports a external antenna Type 5 dBi Omni Directional. The device also supports 20dBm RF Power.

Iball Baton iB-WRB150N 150M Wireless-N Broadband Router operating temperature is 0°~40° (32°~104°), whereas on -40°~70°(-40°~158°), it can stored and Storage Humidity is 5% – 90% RH, Non-condensing.
